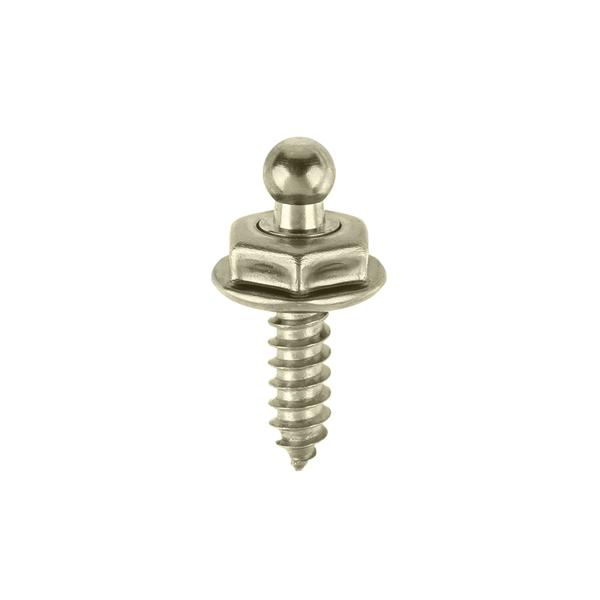

LOXX® Screw Stud – Nickel-Plated Brass

This standalone bottom part of the LOXX® system screws directly into solid materials such as wood, plastic, or fiberglass. Its head acts as a fixed ball stud onto which you snap a compatible LOXX® top part. The result is a secure fastening with a self-locking mechanism that reduces the risk of accidental release. Compared to standard press studs, it holds better under pull from different directions. You release it only by deliberately pulling the top part's cap.

From guitar straps to cover tarps

With a 10 mm thread length, this screw stud works wherever you need to create an anchor point in a solid base. Guitar and bass guitar makers mount it into wooden instrument bodies because it offers a more secure strap attachment than a standard strap button. It is also used for securing protective covers or upholstery in motorhomes and boats.

The stainless steel thread and nickel-plated brass hold up well against corrosion. Under the head you'll find an integrated hex nut for easy tightening with a standard open-end wrench.

Important notes and correct installation

• Watch the material thickness: Measure the base before installation. With thinner panels, there's a risk of drilling all the way through.
• Pre-drilling is a must: When installing into hardwood or laminate, always pre-drill the hole. Tighten the screw carefully and by hand only. Otherwise you risk cracking the finish, splitting the material, or stripping the thread.
• Not for soft joints: If you're joining two layers of leather or fabric, don't use this screw. Reach for the bottom part with a round washer instead.

To create a complete, functional fastening, don't forget to pick up a compatible top part for your LOXX® system.
