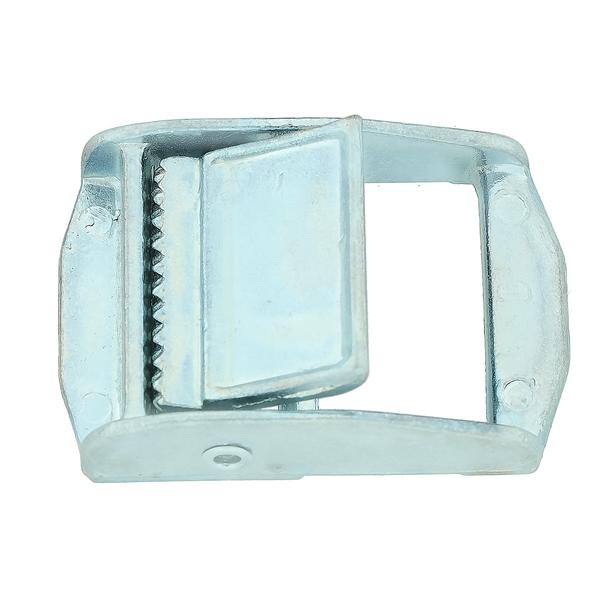

Cam Buckle – Zinc Plated

Product code: CAM 01/20
In Stock 61,647 pcs

A cam buckle is designed for making lightweight securing straps and outdoor gear. It connects and smoothly adjusts strap length without punching holes in the material. The toothed cam acts as a brake. The harder you pull on the strap, the more firmly the teeth press it against the buckle body, which significantly reduces the risk of the strap slipping through.

Breaking load and available variants

  • Breaking load: These values apply to the buckle itself only, not to a finished securing strap. The hardware's strength depends on its width (20, 25 or 40 mm) – while the 20 mm version breaks at around 250 kg of pull, the 40 mm model breaks at around 500 kg.
  • Material: Both the body and the cam are cast from zinc alloy. For permanent use in salt water, aggressive chemical environments, or under extreme loads, go with the stainless steel alternative #CAM02 SS/20, which has a breaking load of up to 500 kg, or up to 1,200 kg in the 50 mm width.

Cam buckle vs. ratchet strap

  • Handling and force: You secure and release the buckle with a simple press of the cam. However, you can only tighten the strap as much as your own hands can pull. A ratchet, by contrast, works as a lever for forceful tensioning.
  • Limits of use: This product is for light securing, not for certified heavy-load transport tie-downs. If you use a strap that is too smooth, too thin, or wet, it may slip through the cam under load. We recommend cam buckles mainly for polypropylene webbing. We do not recommend buckle CAM 01/20 for waterproof webbing CW20/NO: the space for the webbing in it is very tight, and waterproof webbing is less flexible than polypropylene.
Product code CAM 01/20
Breaking load 250 kg
Material Zinc die casting
Surface finish Zinc plated
Weight 20 g
Product variants and parameters
Inner width Total length
20 mm 34 mm
25 mm 44 mm
40 mm 60 mm
Dimensions may vary by ±10%
