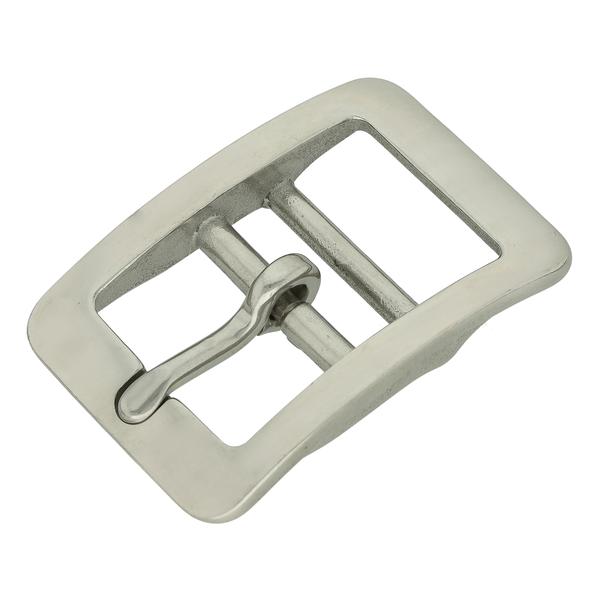

Collar Buckle – Polished, 10 mm

Collar Buckle – Polished, 10 mm New - None % Clearance Stainless Nickel Tested

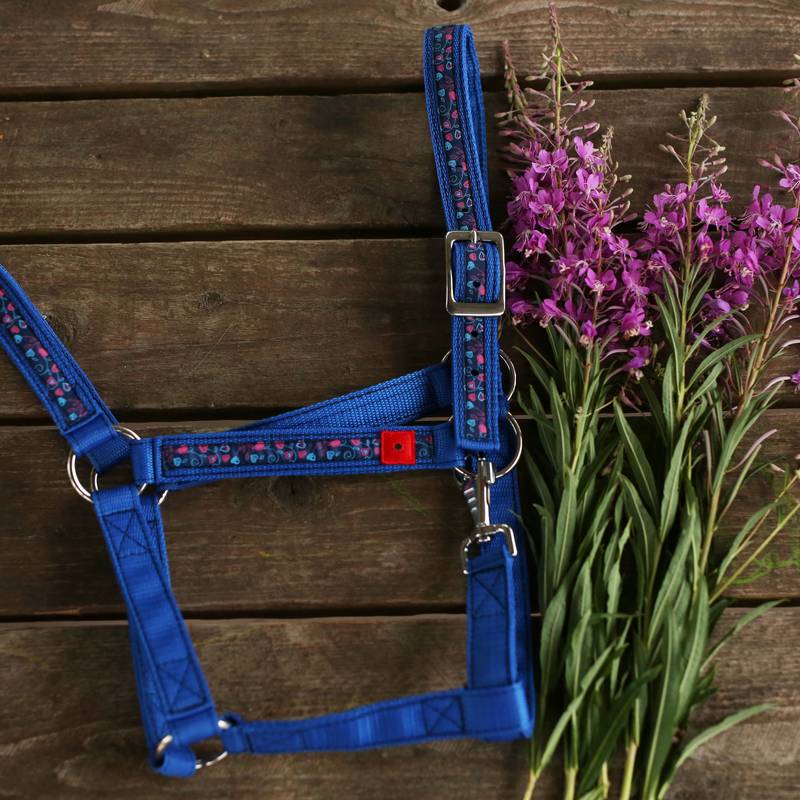

Example of use #2: Collar Buckle – Polished, 10 mm

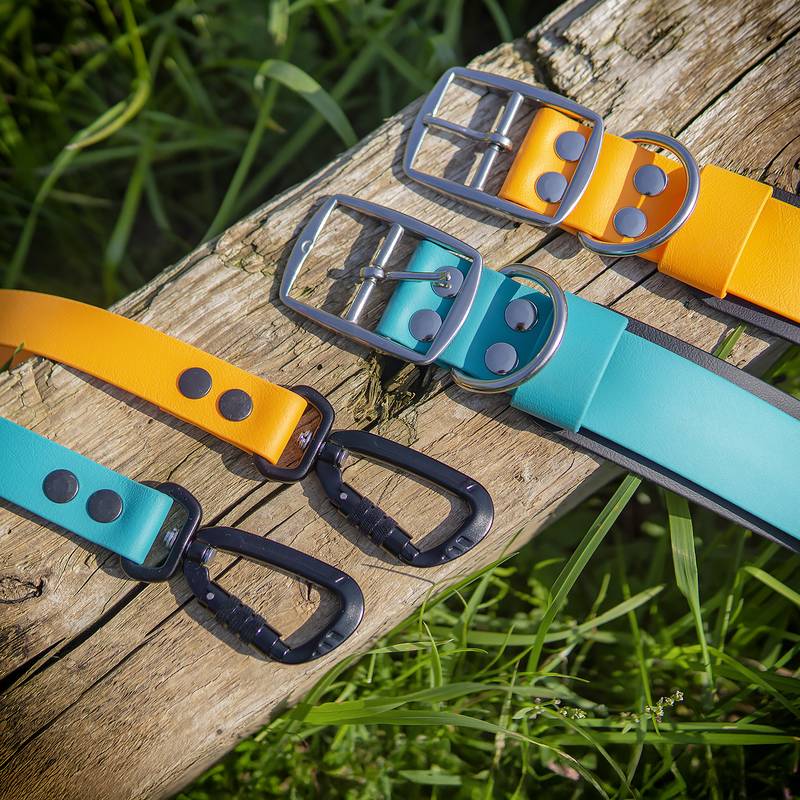

Example of use #3: Collar Buckle – Polished, 10 mm

Example of use #4: Collar Buckle – Polished, 10 mm

Example of use #5: Collar Buckle – Polished, 10 mm

Code: 147SS/10

Availability: In Stock 207 pcs

The most popular collar buckle called as double bar buckle, you needn´t to use extra strap holder. Edges are nice finished. Use stainless steel D-ring #4520SS/13 together and your customers will love the collar for ages. Hand polished stainless steel.

Please note: the #147SS/17 size has a narrower space between the center bars (1.5 mm) and is not suitable for use with our water resistant webbings. We recommend using a new version of buckle #147LSS/16 with those.

Bar–Prong Gap parameter (material clearance): This value indicates the space between the bar and the prong. Although our measurements already include a small technical allowance for movement, we recommend not pushing it too tight. To keep the buckle working smoothly and comfortably, give the prong a little extra room.

Our tip: If your strap is 4 mm thick at the bend, choose a version with a 4.3 mm bar–prong gap to be on the safe side.

Material: Stainless steel casting
Surface finish: Polished

Weight: 8 g

Breaking load: 200 kg 

Product variants and parameters
Inner width	Total length	ø Prong	Bar–Prong Gap
10 mm	26 mm	2.5 mm	3 mm
13 mm	31 mm	2.5 mm	3.3 mm
16 mm	36 mm	2.8 mm	1.5 mm
16 mm	37 mm	2.7 mm	2.3 mm
20 mm	42 mm	2.7 mm	2.6 mm
26 mm	55 mm	3.5 mm	2.5 mm
38 mm	68 mm	3.6 mm	6 mm
