Steel screw post 4–10 mm (10 pcs), Stainless Steel

Steel screw post 4 mm (10 pcs) – Stainless Steel New - None % Clearance Stainless Nickel Tested

Example of use #1: Steel screw post 4 mm (10 pcs) – Stainless Steel

Example of use #2: Steel screw post 4 mm (10 pcs) – Stainless Steel

Example of use #3: Steel screw post 4 mm (10 pcs) – Stainless Steel

Example of use #4: Steel screw post 4 mm (10 pcs) – Stainless Steel

Example of use #5: Steel screw post 4 mm (10 pcs) – Stainless Steel

Code: SS SPH8-4

Availability: In Stock 3,726 packs

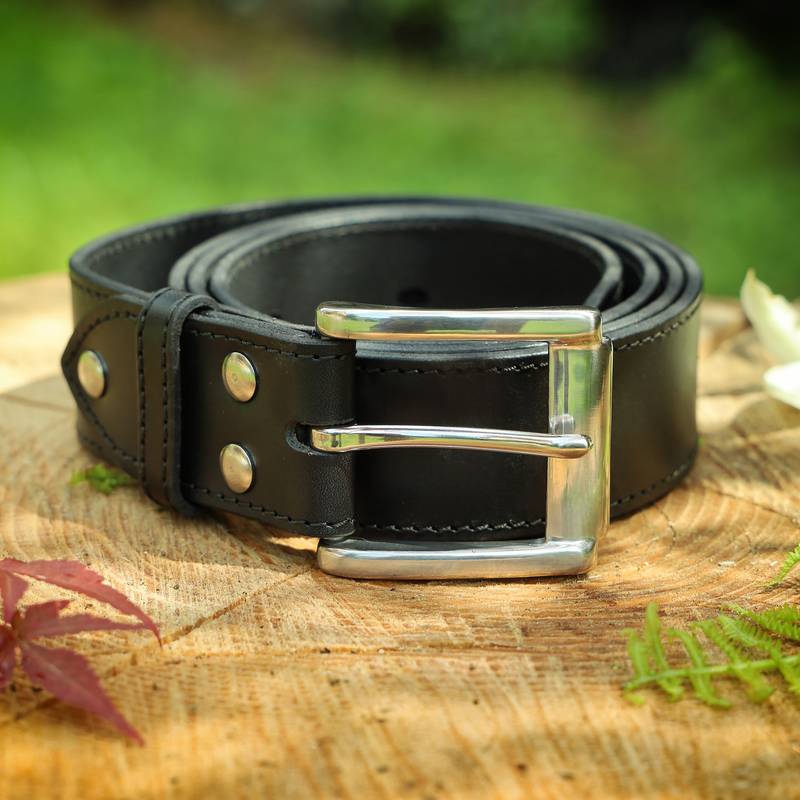

Stainless Steel Chicago screw is used for making belts, dog collars, and to join various materials. It consists of two parts, a hollow screw with solid head and internal thread, which serves as a closed nut, and the opposite screw part to tighten up the join. The advantage of the screw connection is the ease of handling, for example, when changing belt buckles or joining two materials. The price listed is for the entire package (10 pcs)!

How to chose the correct screw length?
Whether we work with leather, webbing, or any other material, its thickness is always the deciding factor. The proper size of a Chicago screw is when the length of a screw nut (value B in the table) is 2 mm less the total thickness of a material that's being connected.

The Steel screw posts SS SPH-6-H differ from the standard version by the thickness of the head, which is approximately 1 mm larger.

TIP: To ensure a 100% solid connection it will suffice to apply a drop of thread locking adhesive to the screw #1918997.

Material: Stainless steel (AISI 304)
Surface finish: Polished

Weight: 22 g

All variants Outer diameter of post: 4 mm·Quantity per Pack: 10
	B	C	S
	4 mm	8 mm	4 mm
	5 mm	8 mm	4 mm
	6 mm	8 mm	6 mm
	8 mm	8 mm	6 mm
	4 mm	10 mm	3 mm
	5 mm	10 mm	3.8 mm
	6 mm	10 mm	4 mm
- 20 %	6 mm	10 mm	4 mm
	8 mm	10 mm	6 mm
	10 mm	10 mm	6 mm

Steel screw post 4 mm (10 pcs) – Stainless Steel
